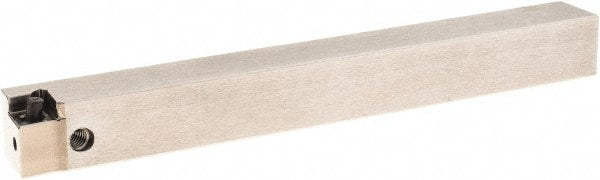

RH PCLC Indexable Turning Toolholder 16mm x 16mm Shank
Item #: 05993803
Brand: Iscar
Model #: 3602015
Product Specifications
| Cutting Direction | Right Hand |
| Hand of Holder | Right Hand |
| Compatible Insert Size Code | CCMT09T304-14 |
| Toolholder Style | PCLC |
| Rake Angle | 0 |
| Multi-use Tool | No |
| Lead Angle | 95.0 |
| Insert Holding Method | Lever |
| Shank Width (Decimal Inch) | 0.6299 |
| Shank Width (mm) | 16.00 |
| Shank Height (Decimal Inch) | 0.6299 |
| Shank Height (mm) | 16.00 |
| Series | Isoturn |
| Overall Length (mm) | 150.00 |
| Overall Length (Decimal Inch) | 5.9055 |
| Cutting Tool Application | Turning |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.6378 |
| Back of Bar to Cutting Edge (mm) | 16.20 |
| Standards | ISO 13399 |
| Coolant Through | No |
