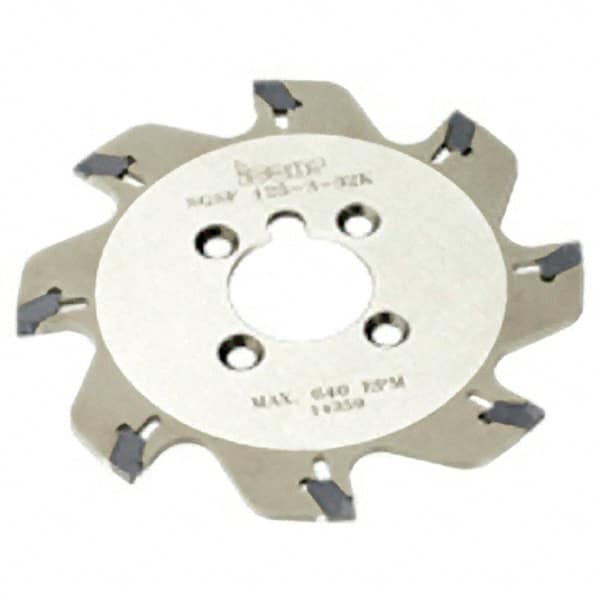

Iscar - Arbor Hole Connection, 0.7087" Depth of Cut, 76mm Cutter Diam, 0.8661" Hole Diam, 8 Tooth Indexable Slotting Cutter - SGSF Toolholder, GSF. Insert
Item #: 05996707
Brand: Iscar
Model #: 2300676
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Maximum Depth of Cut (mm) | 18.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.7087 |
| Cutter Diameter (mm) | 76.00 |
| Cutter Diameter (Decimal Inch) | 2.9921 |
| Hole Diameter (mm) | 22.00 |
| Hole Diameter (Decimal Inch) | 0.8661 |
| Number of Teeth | 8 |
| Toolholder Style | SGSF |
| Series | Self-Grip(SGSA) |
| Insert Style | GSF. |
| Staggered Tooth | No |
| Number of Cutter Inserts | 8 |
| Insert Holding Method | Self Clamping |
| Maximum RPM | 1050 |
| Minimum Cutting Width (Decimal Inch) | 0.0591 |
| Maximum Cutting Width (Decimal Inch) | 0.0705 |
| Maximum Cutting Width (mm) | 1.79 |
| Hub Diameter (mm) | 39.00 |
| Hub Diameter (Decimal Inch) | 1.5354 |
