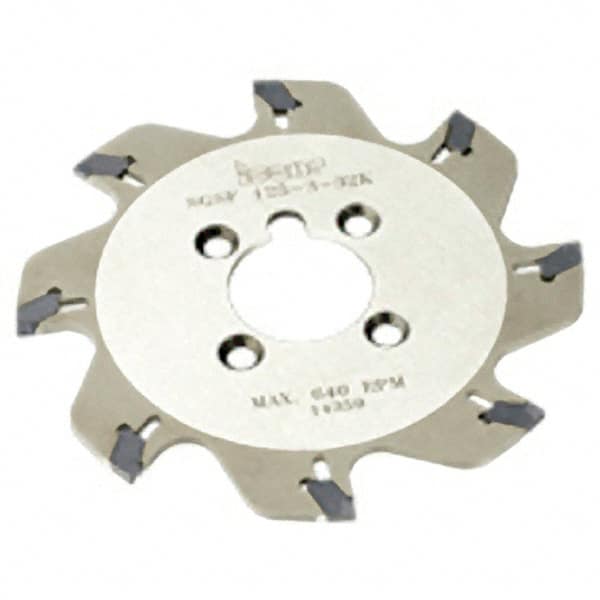

Iscar - Arbor Hole Connection, 1.3386" Depth of Cut, 125mm Cutter Diam, 1.2598" Hole Diam, 12 Tooth Indexable Slotting Cutter - SGSF Toolholder, GSF. Insert
Item #: 05996749
Brand: Iscar
Model #: 2301355
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Maximum Depth of Cut (mm) | 34.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.3386 |
| Cutter Diameter (mm) | 125.00 |
| Cutter Diameter (Decimal Inch) | 4.9213 |
| Hole Diameter (mm) | 32.00 |
| Hole Diameter (Decimal Inch) | 1.2598 |
| Number of Teeth | 12 |
| Toolholder Style | SGSF |
| Series | Self-Grip(SGSA) |
| Insert Style | GSF. |
| Staggered Tooth | No |
| Number of Cutter Inserts | 12 |
| Insert Holding Method | Self Clamping |
| Maximum RPM | 640 |
| Minimum Cutting Width (Decimal Inch) | 0.0709 |
| Maximum Cutting Width (Decimal Inch) | 0.1059 |
| Maximum Cutting Width (mm) | 2.69 |
| Hub Diameter (mm) | 55.00 |
| Hub Diameter (Decimal Inch) | 2.1654 |
