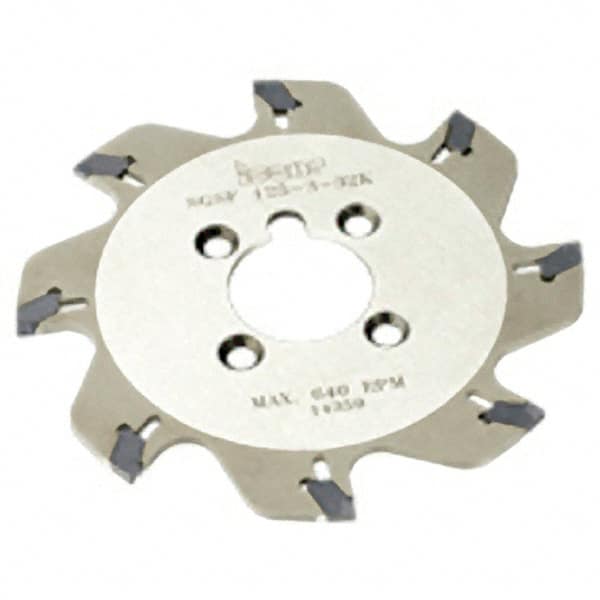

Iscar - Arbor Hole Connection, 4.685" Depth of Cut, 350mm Cutter Diam, 1.9685" Hole Diam, 38 Tooth Indexable Slotting Cutter - SGSF Toolholder, GSFN Insert
Item #: 05996764
Brand: Iscar
Model #: 2398790
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Maximum Depth of Cut (mm) | 119.00 |
| Maximum Depth of Cut (Decimal Inch) | 4.6850 |
| Cutter Diameter (mm) | 350.00 |
| Cutter Diameter (Decimal Inch) | 13.7795 |
| Hole Diameter (mm) | 50.00 |
| Hole Diameter (Decimal Inch) | 1.9685 |
| Number of Teeth | 38 |
| Toolholder Style | SGSF |
| Series | Self-Grip(SGSA) |
| Insert Style | GSFN |
| Staggered Tooth | No |
| Number of Cutter Inserts | 38 |
| Insert Holding Method | Self Clamping |
| Maximum RPM | 230 |
| Minimum Cutting Width (Decimal Inch) | 0.1394 |
| Maximum Cutting Width (Decimal Inch) | 0.1780 |
| Maximum Cutting Width (mm) | 4.52 |
| Hub Diameter (mm) | 110.00 |
| Hub Diameter (Decimal Inch) | 4.3307 |
