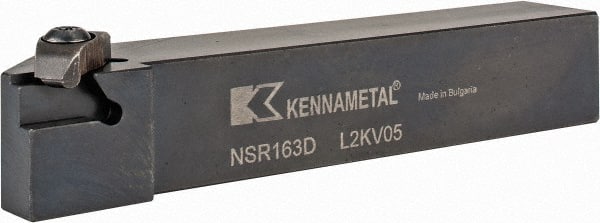

Kennametal - External Thread, Right Hand Cut, 25.4mm Shank Width x 25.4mm Shank Height Indexable Threading Toolholder - 152.4mm OAL, N.3R Insert Compatibility, NS Toolholder, Series Top Notch
Item #: 06000756
Brand: Kennametal
Model #: 1016462
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Type | External |
| Hand of Holder | Right Hand |
| Shank Width/Diameter (mm) | 25.40 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Shank Height (mm) | 25.40 |
| Shank Height (Decimal Inch) | 1.0000 |
| Overall Length (Decimal Inch) | 6.0000 |
| Overall Length (mm) | 152.40 |
| Insert Compatibility | N.3R |
| Series | Top Notch |
| Toolholder Style | NS |
| Through Coolant | No |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Threading |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.2500 |
| Center to Cutting Edge (Decimal Inch) | 0.5000 |
| Maximum Depth of Cut (mm) | 5.33 |
| Maximum Depth of Cut (Decimal Inch) | 0.2100 |
| Head Length (mm) | 31.75 |
| Head Length (Decimal Inch) | 1.2500 |
