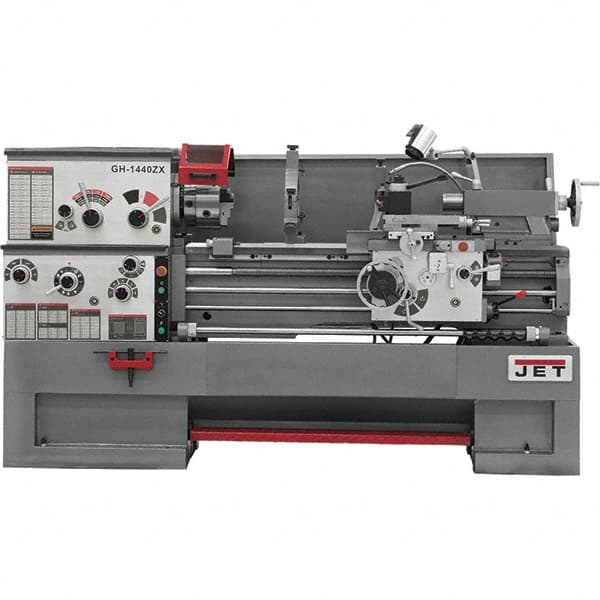

Jet - 14" Swing, 40" Between Centers, 230/460 Volt, Triple Phase Engine Lathe - 7MT Taper, 7-1/2 hp, 42 to 1,800 RPM, 3-1/8" Bore Diam, 40" Deep x 46-7/8" High x 97-1/2" Long - Exact Tooling

Jet - 14" Swing, 40" Between Centers, 230/460 Volt, Triple Phase Engine Lathe - 7MT Taper, 7-1/2 hp, 42 to 1,800 RPM, 3-1/8" Bore Diam, 40" Deep x 46-7/8" High x 97-1/2" Long


Item #: 06012629
Brand: Jet
Model #: 321910
Exact Tooling IR#: 04

Features and Benefits

Engine lathes are used for heavy-duty work and offer heavy casted machine bases with built-in coolant systems and foot brakes. The Swing range on these lathes is from 13" and larger.
Geared head lathes generally feature drive belt(s) from the motor to the headstock. Speed changes are made by shifting gear lever combinations in the headstock.
Three-phase refers to three individual lines (coils) that connect to and run voltage through the motor. Each line alternates in a sequence as they reach their voltage peak. They provide a more stable flow of voltage and more horsepower to the equipment.
Product Specifications
Machine Type Engine Lathe
Spindle Speed Control Geared Head
Phase 3
Voltage 230/460
Horsepower (HP) 7-1/2
Swing (Inch) 14
Distance Between Centers (Inch) 40
Spindle Bore Diameter (Inch) 3-1/8
Spindle Taper Size 7MT
Spindle Taper Size (Sleeve) 5MT
Swing Over Gap (Inch) 23-5/8
Swing Over Gap (Decimal Inch) 23.6250
Swing Over Cross Slide (Inch) 7-5/8
Swing Over Cross Slide (Decimal Inch) 7.6250
Gap Length (Decimal Inch) 12.2500
Bed Width (Decimal Inch) 13.3750
Spindle Nose Designation D1-8
Number of Spindle Speeds 12
Minimum Spindle Speed (RPM) 42.00
Maximum Spindle Speed (RPM) 1800.00
Number of Inch Threads 61
Maximum Threads Per Inch 72
Minimum Metric Pitch (Decimal Inch) 0.0500
Maximum Metric Pitch (Decimal Inch) 20.0000
Number of Metric Threads 24
Min. Longitudinal Feed Per Rev. (Decimal Inch) 0.0015
Max. Longitudinal Feed Per Rev. (Decimal Inch) 0.0913
Min. Cross Feed Rate Per Revolution (Decimal Inch) 0.000600
Max. Cross Feed Rate Per Revolution (Decimal Inch) 0.0365
Minimum Threads Per Inch 1-5/8
Cross Slide Travel (Decimal Inch) 9.0000
Top Slide Travel (Decimal Inch) 5.1250
Tailstock Travel (Decimal Inch) 5.0000
Tailstock Taper Size 4MT
Overall Length (Inch) 97-1/2
Overall Length (Decimal Inch) 97.5000
Overall Height (Inch) 46-7/8
Overall Height (Decimal Inch) 46.8750
Overall Depth (Inch) 40
Overall Depth (Decimal Inch) 40.0000
Includes 1 10"3-Jaw Scroll Chuck With Top Reversing Jaws; 12" Face Plate; 5 pc Quick Change Tool Post Set; Follow Rest; Large Capacity Steady Rest with Ball Bearing Tips; Articulating Led Work Lamp; Live Center; Tool Box and Adjusting Tools
Compound Travel (Inch) 5-1/8
$ 25,145.01
