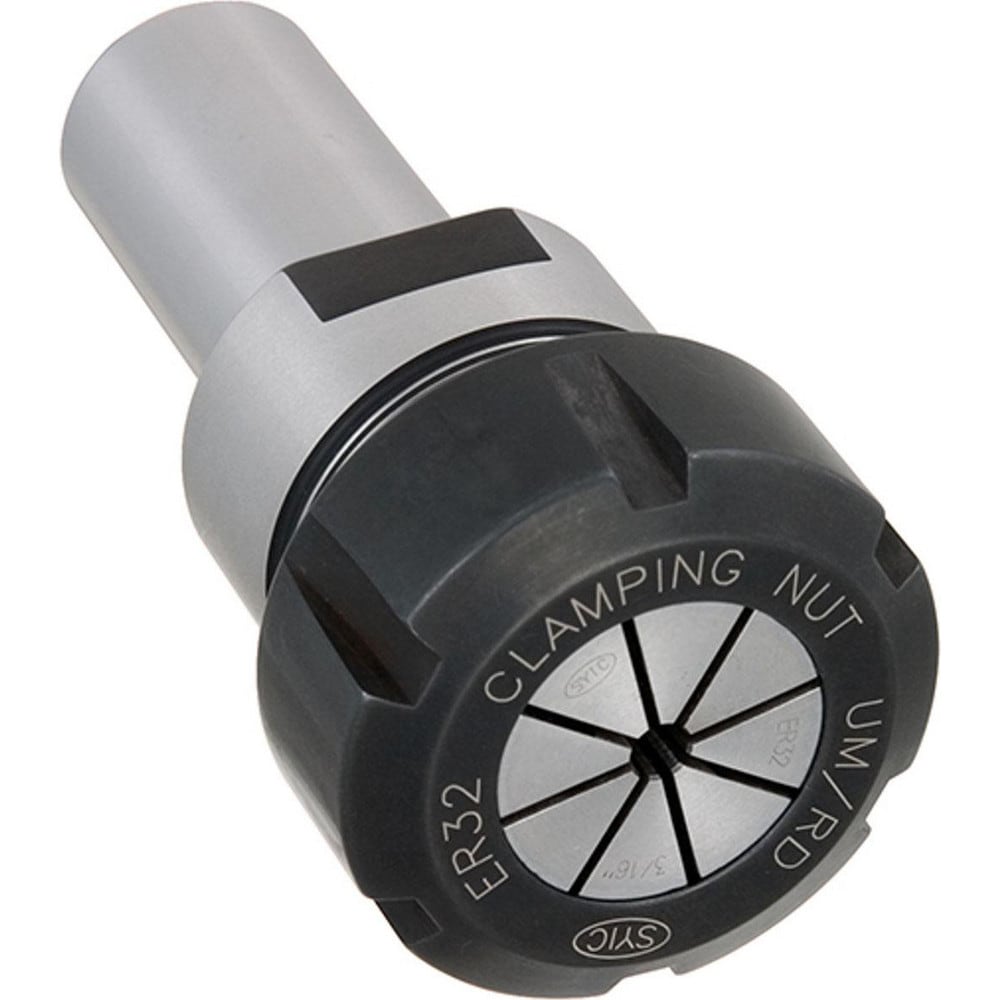

Collet Chuck: 0.50 to 7.10 mm Capacity, ER Collet
Item #: 78421625
Brand: Techniks
Model #: 04851
Product Specifications
| Collet System | ER |
| Collet Series | ER11 |
| Taper Size | C16 |
| Projection (mm) | 140.00 |
| Through Coolant | No |
| Minimum Collet Capacity (mm) | 0.50 |
| Minimum Collet Capacity (Decimal Inch) | 0.0190 |
| Maximum Collet Capacity (mm) | 7.10 |
| Overall Length (mm) | 156.6 |
| Nose Diameter (Mm) ( - 2 Decimals) | 19 |
| Type | C16 |
| UNSPSC Code | 27112808 |
| Thread Size (mm) | M8x1 |
| Country of Origin | Taiwan |
