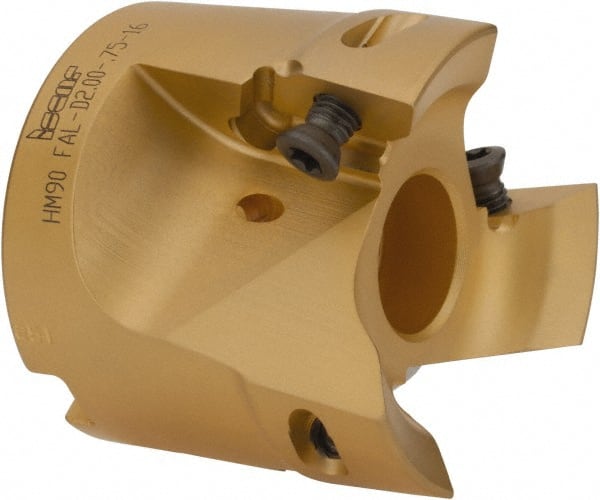

Iscar - 3 Inserts, 2" Cut Diam, 3/4" Arbor Diam, 0.622" Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0/90° Lead Angle, 1-3/4" High, HM90 APCR 1605... Insert Compatibility, Series HM90
Item #: 06061774
Brand: Iscar
Model #: 3102769
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 2 |
| Cutting Diameter (Decimal Inch) | 2.0000 |
| Arbor Hole Diameter (Inch) | 3/4 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Lead Angle | 0/90 |
| Overall Height (Decimal Inch) | 1.7500 |
| Insert Compatibility | HM90 APCR 1605... |
| Series | HM90 |
| Through Coolant | No |
| Maximum Depth of Cut (Decimal Inch) | 0.6220 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw |
| Cutter Style | HM90 FAL-16 |
| Number of Flutes | 3 |
| Maximum RPM | 29000 |
