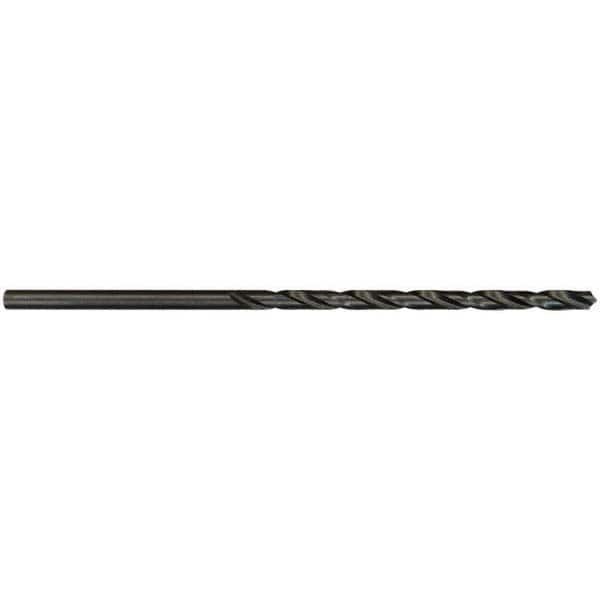

Chicago-Latrobe - #20 135° Spiral Flute Cobalt Taper Length Drill Bit
Item #: 06129910
Brand: Chicago-Latrobe
Model #: 44870
Product Specifications
| Drill Bit Size (Wire) | #20 |
| Drill Bit Size (Decimal Inch) | 0.1610 |
| Drill Point Angle | 135 |
| Drill Bit Material | Cobalt |
| Drill Bit Finish/Coating | Oxide/Gold |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Through Coolant | No |
| Point Type | Split Point |
| Flute Length (Inch) | 3-3/8 |
| Overall Length (Inch) | 5-3/4 |
| Spiral Type | Regular Spiral |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance (Decimal Inch) | +0.0000 to -0.0007 |
| Web Thinning | Web-Thinned |
| Material Grade | M42 |
| Series/List | 520 |
