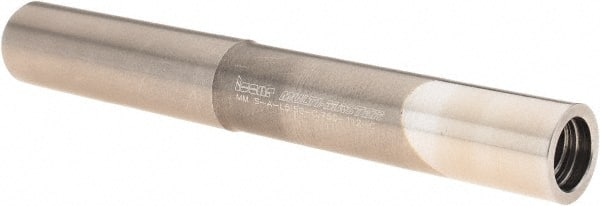

Iscar - Multimaster 3/4" Stepped Shank Milling Tip Insert Holder & Shank - 0.72" Neck Diam, T12 Neck Thread, 5-1/2" OAL, Carbide MM S-A Tool Holder
Item #: 06154694
Brand: Iscar
Model #: 3103843
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | Multimaster |
| Shank Type | Stepped Shank |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Neck Diameter (Decimal Inch) | 0.7200 |
| Neck Thread Size | T12 |
| Toolholder Material | Carbide |
| Overall Length (Decimal Inch) | 5.5000 |
| Through Coolant | NonThrough Coolant |
| Weldon Flat | No |
| Head Length (Decimal Inch) | 3.0000 |
| Effective Length (Decimal Inch) | 2.9300 |
| Milling Tip Style | BCM-MM; FF EWX-MM-04; HCE-MM; HCM-MM; HM90 E90A-MM-10; HP E90AN-MM-07; T490 ELN-MM-08 |
| Shank Shape | Straight |
| Toolholder Style | MM S-A |
