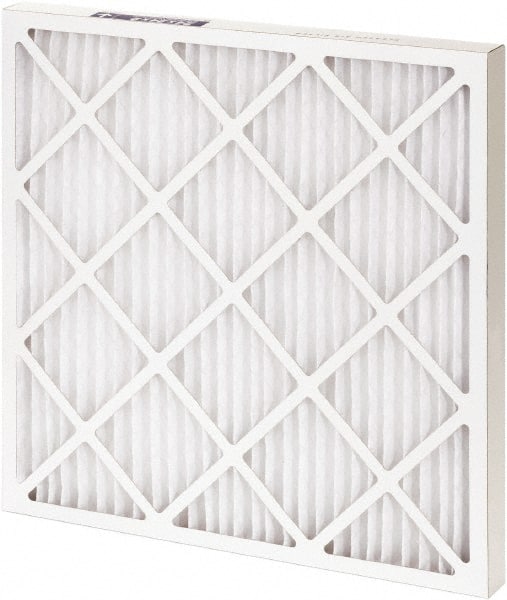

Made in USA - 12" Noml Height x 12" Noml Width x 1" Noml Depth, 35% Capture Efficiency, Wire-Backed Pleated Air Filter - MERV 8, Synthetic, Integrated Paperboard Frame, 300 Max FPM, 300 CFM, For Any Unit
Item #: 06222137
Brand: Made in USA
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Filter Type | Wire-Backed Pleated |
| Nominal Height (Inch) | 12 |
| Nominal Width (Inch) | 12 |
| Nominal Depth (Inch) | 1 |
| Particle Capture Efficiency (%) | 35 |
| MERV Rating | 8 |
| Media Material | Synthetic |
| Integrated Frame | Yes |
| Actual Height (Inch) | 11-3/4 |
| Actual Width (Inch) | 11-3/4 |
| Actual Depth (Inch) | 3/4 |
| Maximum Air Flow (FPM) | 300 |
| CFM | 300 |
| Initial Resistance at FPM (Inches w.g.) | .14 (at 300 fpm) |
| Final Resistance at FPM (Inches w.g.) | 1 |
| Maximum Temperature (F) | 200 |
| Capacity | Standard |
| Pleats Per Square Foot | 12 |
| Frame Material | Paperboard |
| For Use With | Any Unit |
| Standards Met | UL 900; ASHRAE 52.2-2012 |
