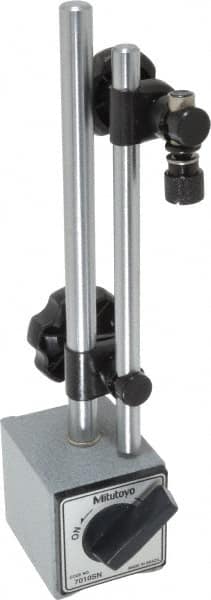

Mitutoyo - 130 Lb Magnetic Force, Indicator Positioner & Holder with Base - Post & Adjustable Rod, Rectangular Base, 55mm Base Height, 58mm Base Length, 50mm Base Width
Item #: 06256895
Brand: Mitutoyo
Model #: 7010S
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Includes Base | Yes |
| Fine Adjustment | No |
| Magnetic Pull | 130 Lbs |
| Base Height (mm) | 55.00 |
| Base Length (mm) | 58.00 |
| Base Width/Diameter (mm) | 50.00 |
| Base Shape | Rectangular |
| Overall Length (mm) | 232.00 |
| Overall Length (Decimal Inch) | 9.1339 |
| Post Height (mm) | 177.00 |
| Arm Length (mm) | 165.00 |
| Post Diameter (mm) | 12.00 |
| Arm Diameter (mm) | 10.00 |
| Clamping Diameter (mm) | 6.00; 8.00; 9.53 |
| Clamping Diameter (Inch) | 3/8 |
| Thread Size | M8x1.25 |
| Arm Style | Post & Adjustable Rod |
| Includes | Holder; Magnetic Base w/ Arm |
