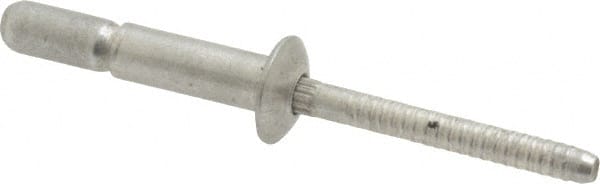

RivetKing - Size 67 Dome Head Aluminum Structural with Locking Stem Blind Rivet - Aluminum Mandrel, 0.214" to 0.437" Grip, 0.385" Head Diam, 0.191" to 0.201" Hole Diam, 0.572" Length Under Head, 3/16" Body Diam
Item #: 06327159
Brand: RivetKing
Model #: ABA67/STR/P100
Exact Tooling IR#: 04
Features and Benefits
Structural rivets with a locking stem have a locking collar on the stem that creates a watertight, vibration-resistant bond.
Dome head types have domed, cylindrical heads with low profiles. They are commonly used for their large bearing surface and versatility.
Aluminum has a high strength-to-weight ratio and is wear resistant, nonmagnetic and conductive. It is easier to form and machine than steel and is naturally noncorrosive.
Aluminum has a high strength-to-weight ratio and is wear resistant, nonmagnetic and conductive. It is easier to form and machine than steel and is naturally noncorrosive.
| Product Specifications | |
|---|---|
| Type | Structural w/ Locking Stem |
| Head Type | Dome |
| Size Code | 67 |
| Rivet Material | Aluminum |
| Mandrel Material | Aluminum |
| Minimum Grip (Decimal Inch) | 0.2140 |
| Maximum Grip (Decimal Inch) | 0.4370 |
| Head Diameter (Decimal Inch) | 0.3850 |
| Minimum Hole Diameter (Decimal Inch) | 0.1910 |
| Maximum Hole Diameter (Decimal Inch) | 0.2010 |
| Drill Size (Wire) | #10 |
| Length Under Head (Decimal Inch) | 0.5720 |
| Body Diameter (Decimal Inch) | 0.1875 |
| Body Diameter (Inch) | 3/16 |
| Shear Strength (Lb.) | 550.00 |
| Tensile Strength (Lb.) | 450.00 |
| Fastener Standard | IFI 134 |
| Head Height (Decimal Inch) | 0.0850 |
