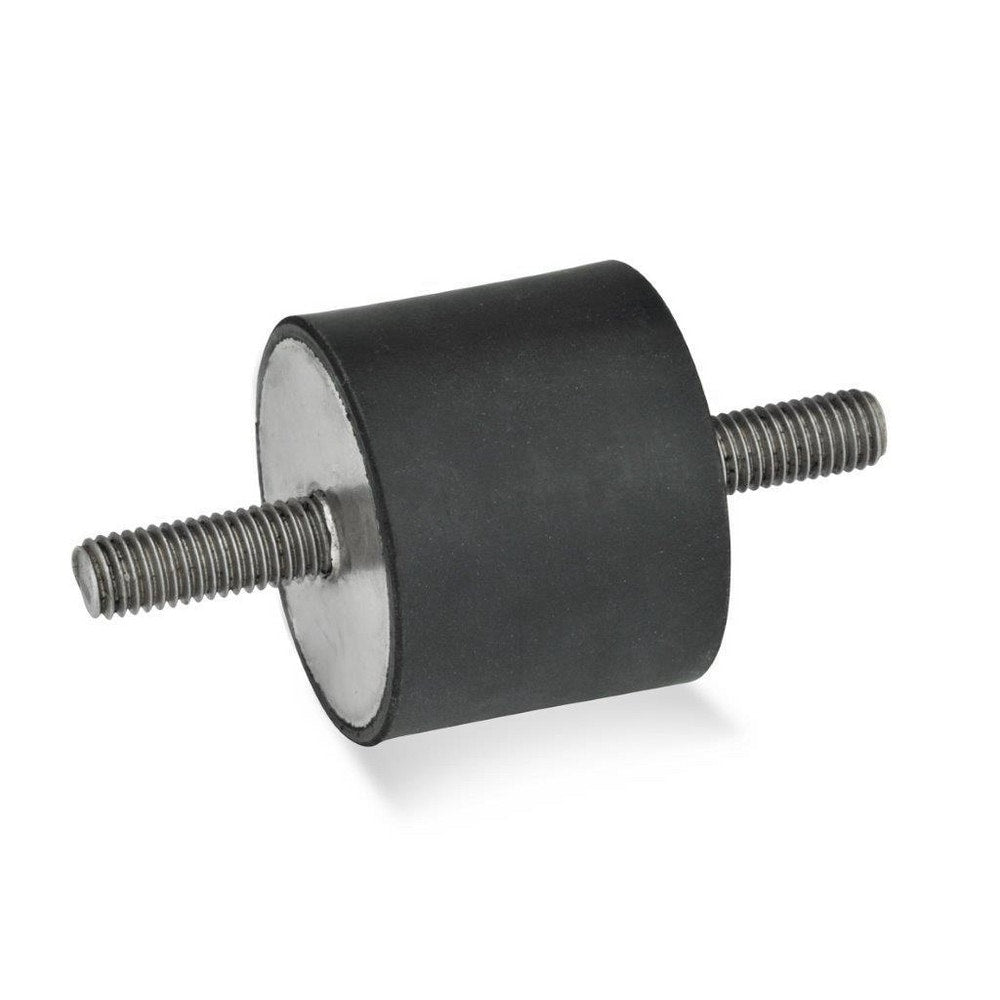

Vibration Isolators; Isolator Type: Stud/Stud; Insert Material: Stainless Steel; Isolator Material: Natural Rubber; Maximum Load Capacity: 1070.00 N; Top Diameter: 25.00; Bottom Diameter: 25; Thread Size: M6x1; Overall Width: 25 mm
Item #: 69311272
Brand: J.W. Winco
Model #: 451-25-15-M6-SS-55
Product Specifications
| Isolator Type | Stud/Stud |
| Insert Material | Stainless Steel |
| Isolator Material | Natural Rubber |
| Maximum Load Capacity | 1070.00 N |
| Top Diameter | 25.00 |
| Bottom Diameter | 25 |
| Thread Size | M6x1 |
| Overall Width | 25 mm |
| Overall Diameter | 25 mm |
| Thread Length (Decimal Inch) | 0.7100 |
| Deflection | 0.1500 |
| Hardness Rating | Shore 55A |
| Mount Type | Stud |
| Shape | Round |
| Thread Pitch | 1 mm |
| Thread Standard | Metric |
| Height (Decimal Inch) | 51 mm |
| UNSPSC Code | 23153130 |
| Isolator Type | Stud/Stud |
| Insert Material | Stainless Steel |
| Isolator Material | Natural Rubber |
| Maximum Load Capacity | 1070.00 N |
| Top Diameter | 25.00 |
| Bottom Diameter | 25 |
| Thread Size | M6x1 |
| Overall Width | 25 mm |
| Overall Diameter | 25 mm |
| Thread Length (Decimal Inch) | 0.7100 |
| Deflection | 0.1500 |
| Hardness Rating | Shore 55A |
| Mount Type | Stud |
| Shape | Round |
| Thread Pitch | 1 mm |
| Thread Standard | Metric |
| Height (Decimal Inch) | 51 mm |
| UNSPSC Code | 23153130 |
| MSC Part # | 69311272 |
| Mfr Part # | 451-25-15-M6-SS-55 |
| Country of Origin Country of Origin is subject to change | Hungary |
