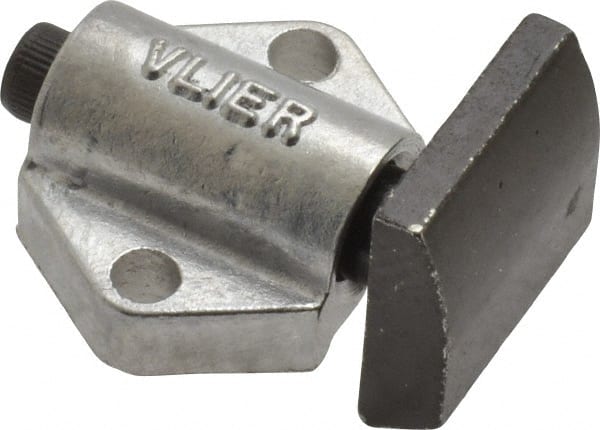

Vlier - 7/8" Body Width x 11/16" Body Len, 1/8" Stroke Len, 21/32" Btw Mt Hole Ctrs, 0.656" Btw Mt Hole & Edge, Tangless Square Spring Locating Stop
Item #: 06461933
Brand: Vlier
Model #: SS88C
Product Specifications
| Stop Head Width (Inch) | 5/8 |
| Stop Head Width (Decimal Inch) | 0.6250 |
| Stroke Length (Decimal Inch) | 0.1250 |
| Stroke Length (Inch) | 1/8 |
| Base Width (Decimal Inch) | 0.8750 |
| Body Length (Inch) | 11/16 |
| Body Length (Decimal Inch) | 0.6880 |
| Stop Head Height (Decimal Inch) | 0.6250 |
| Distance Between Mount Hole Centers (Decimal Inch) | 0.6560 |
| Distance Between Mount Hole Centers (Inch) | 21/32 |
| Tang Profile | Tangless |
| Initial End Force (Lb.) | 5.13 |
| Middle End Force (Lb.) | 10.00 |
| Final End Force (Lb.) | 14.90 |
| Stop Head Thickness (Decimal Inch) | 0.1870 |
| Body Width (Inch) | 7/8 |
| Body Width (Decimal Inch) | 0.8750 |
| Distance Between Mount Hole & Edge (Decimal Inch) | 0.6560 |
| Mounting Slot Length (Decimal Inch) | 0.1360 |
| Mounting Slot Width (Decimal Inch) | 0.1360 |
| Base Thickness (Decimal Inch) | 0.1870 |
| Body Material | Aluminum |
