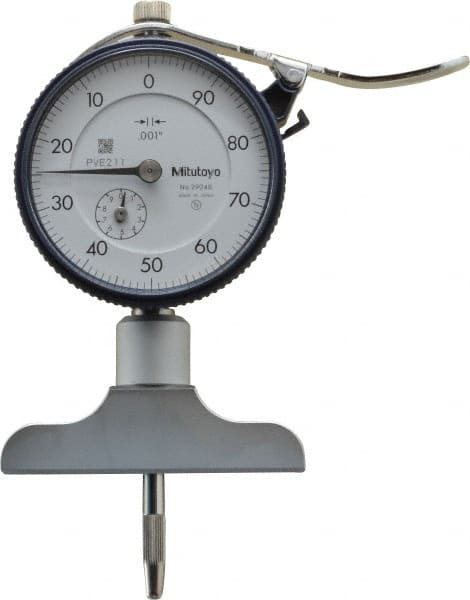

Mitutoyo - 0 to 8 Inch Range, Carbide Tipped Ball Point, White Dial Depth Gage - 0.001 Inch Graduation, 0.002 Inch Accuracy, 1 Inch Travel, 2-1/2 Inch Base Measuring Length
Item #: 06467013
Brand: Mitutoyo
Model #: 7217S
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Maximum Measurement (Inch) | 8 |
| Graduation (mm) | 0.01 |
| Graduation (Decimal Inch) | 0.0010 |
| Base Length (Decimal Inch) | 2.5000 |
| Base Length (Inch) | 2-1/2 |
| Travel (Inch) | 1 |
| Accuracy (Decimal Inch) | 0.0020 |
| Base Flatness (Decimal Inch) | 0.000200 |
| Material | Carbide-Tipped (Ball Point) |
| Measuring Rods Included | 4 |
| Includes Hook | No |
| Dial Face Color | White |
| Minimum Measurement (Inch) | 0 |
