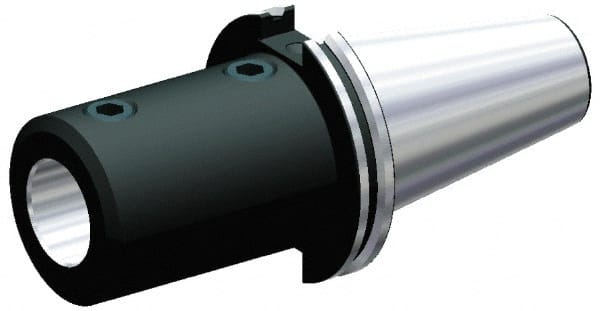

Kennametal - CAT50 Taper, 3/4" Inside Hole Diam, 2-3/4" Projection, Straight Shank with Flat Adapter - Through Coolant
Item #: 06494637
Brand: Kennametal
Model #: 1749472
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Straight Shank w/ Flat Adapter |
| Taper Size | CAT50 |
| Inside Hole Diameter (mm) | 19.05 |
| Inside Hole Diameter (Decimal Inch) | 0.7500 |
| Projection (mm) | 69.85 |
| Projection (Decimal Inch) | 2.7500 |
| Nose Diameter (Decimal Inch) | 1.7500 |
| Overall Length (mm) | 171.45 |
| Overall Length (Decimal Inch) | 6.7500 |
| Through Coolant | Yes |
| Drawbar Thread Size | 1-8 |
