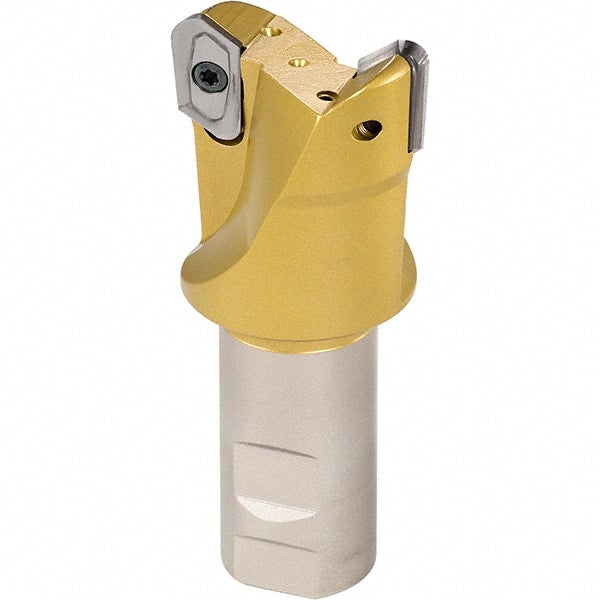

Iscar - 1-1/2" Cut Diam, 0.807" Max Depth of Cut, 1-1/2" Shank Diam, 10" OAL, Indexable Square Shoulder End Mill - HM90 APCR 2206.. Inserts, Cylindrical Shank, 90° Lead Angle, Through Coolant, Series Helialu
Item #: 06509954
Brand: Iscar
Model #: 3103544
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.5000 |
| Cutting Diameter (Inch) | 1-1/2 |
| Shank Type | Cylindrical |
| Shank Diameter (Inch) | 1-1/2 |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Overall Length/Projection (Decimal Inch) | 10.0000 |
| Lead Angle | 90 |
| Series | Helialu |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (Decimal Inch) | 0.8070 |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | HM90 EAL-22 |
| Number of Flutes | 2 |
| Head Length (Decimal Inch) | 6.8500 |
| Weldon Flat | No |
| Insert Compatibility | HM90 APCR 2206.. |
| Shank Length (Decimal Inch) | 3.1500 |
| Maximum RPM | 27000 |
