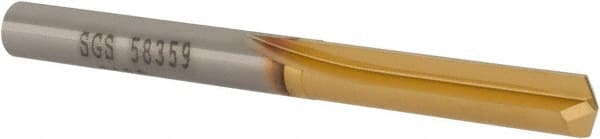

SGS - 7/32", 140° Point, Solid Carbide Straight Flute Drill Bit
Item #: 73531410
Brand: SGS
Model #: 58359
Features and Benefits
Straight flute drills are used for drilling holes in hardened and high strength steels over 50 HRC. The straight flute allows for deep hole drilling.
Solid carbide provides better rigidity than High Speed Steel (HSS). It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium Nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
| Product Specifications | |
|---|---|
| Drill Bit Type | Straight-Flute Drill Bit |
| Drill Point Angle | 140 |
| Drill Bit Size (Inch) | 7/32 |
| Drill Bit Size (Decimal) | 0.2188 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | TiN |
| Overall Length (Inch) | 2-3/8 |
| Through Coolant | No |
| Flute Length (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 0.2188 |
| Number of Flutes | 2 |
| Point Type | Standard |
| Shank Length (Decimal Inch) | 1.2000 |
| Cutting Direction | Right Hand |
| Web Thinning | Web-Thinned |
| Material Grade | Micrograin |
| Series/List | 106 |
