Kennametal - MCLN, Left Hand Cut, 5° Lead Angle, 1-1/2" Shank Height x 1-1/2" Shank Width, Negative Rake Indexable Turning Toolholder - 7" OAL, CN..54. Insert Compatibility, Series Kenloc - Exact Tooling

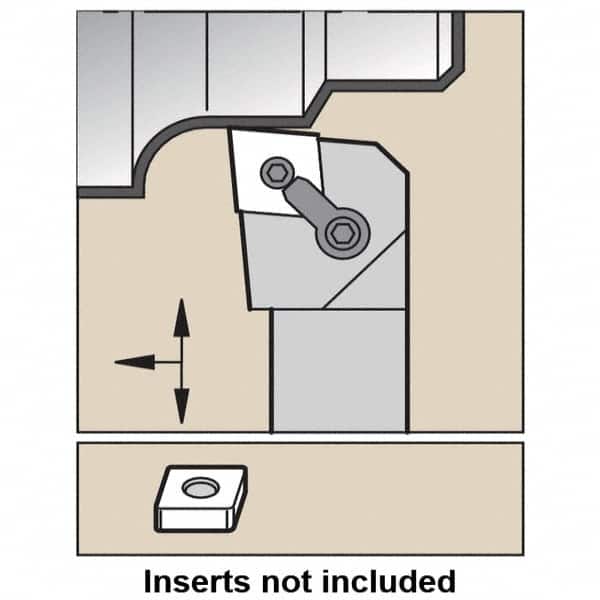

Kennametal - MCLN, Left Hand Cut, 5° Lead Angle, 1-1/2" Shank Height x 1-1/2" Shank Width, Negative Rake Indexable Turning Toolholder - 7" OAL, CN..54. Insert Compatibility, Series Kenloc


Item #: 06571293
Brand: Kennametal
Model #: 1096102
Exact Tooling IR#: 04

Product Specifications
Hand of Holder Left Hand
Toolholder Style MCLN
Rake Negative
Series Kenloc
Lead Angle 5
Shank Width (Inch) 1-1/2
Shank Width (Decimal Inch) 1.5000
Shank Height (Inch) 1-1/2
Shank Height (mm) 38.10
Shank Height (Decimal Inch) 1.5000
Overall Length (Inch) 7
Overall Length (mm) 177.80
Overall Length (Decimal Inch) 7.0000
Insert Compatibility CN..54.
Multi-Use Tool No
Insert Holding Method Screw or Clamp
Back of Bar to Cutting Edge (Decimal Inch) 2.0000
Head Length (Decimal Inch) 1.3700
Insert Inscribed Circle (Inch) 5/8
Insert Inscribed Circle (Decimal Inch) 0.6250
Toolholder Material Steel
$ 170.39
