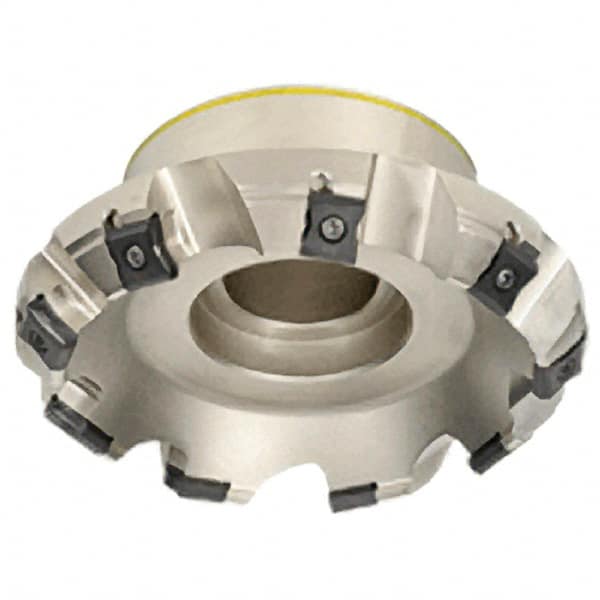

Iscar - 8" Cut Diam, 2-1/2" Arbor Hole, 0.295" Max Depth of Cut, 45° Indexable Chamfer & Angle Face Mill - 14 Inserts, LN.. 1506... Insert, Right Hand Cut, 14 Flutes, Series F45LN
Item #: 06627210
Brand: Iscar
Model #: 3181107
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 8.0000 |
| Arbor Hole Diameter (Decimal Inch) | 2.5000 |
| Lead Angle | 45 |
| Overall Height (Inch) | 2-1/2 |
| Overall Height (Decimal Inch) | 2.5000 |
| Insert Compatibility | LN.. 1506... |
| Series | F45LN |
| Through Coolant | No |
| Maximum Depth of Cut (Decimal Inch) | 0.2950 |
| Number of Cutter Inserts | 14 |
| Insert Holding Method | Screw |
| Cutter Style | F45LN-N15 |
| Number of Flutes | 14 |
| Maximum Body Diameter (Decimal Inch) | 8.7900 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | LNAT 1506; LNHW; LNKX; LNMT |
