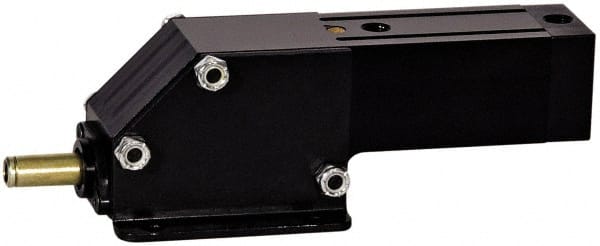

De-Sta-Co - 2,000 Lb Capacity, 3/4" Plunger Travel, M8 x 8mm Plunger, 1/8 NPT Port, 3,285 N at 5 Bar, Air Power Straight Line Action Clamp - 0.59" Centerline Height, 7.8" Overall Closed Length x 2.37" Overall Closed Height, 145 Max psig, 14 to 194°F
Item #: 06672331
Brand: De-Sta-Co
Model #: 8031
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Power Type | Pneumatic |
| Load Capacity (N) | 890.00 |
| Load Capacity (Lb.) | 2000.00 |
| Plunger Travel (mm) | 19.05 |
| Plunger Travel (Decimal Inch) | 0.7500 |
| Plunger Thread Size | M8 |
| Plunger Diameter (mm) | 8.00 |
| Port Size | 1/8 NPT |
| Clamping Force @ 5 Bar (N) | 3285.00 |
| Plunger Centerline Height (mm) | 14.99 |
| Plunger Centerline Height (Decimal Inch) | 0.5900 |
| Overall Closed Length (Decimal Inch) | 7.80 |
| Overall Closed Height (mm) | 60.30 |
| Overall Closed Height (Decimal Inch) | 2.37 |
| Mounting Hole Diameter (mm) | 6.86 |
| Mounting Hole Diameter (Decimal Inch) | 0.2700 |
| Length Distance Between Mount Holes (mm) | 55.00 |
| Length Distance Between Mount Holes (Decimal Inch) | 2.17 |
| Width Distance Between Mount Holes (mm) | 59.94 |
| Width Distance Between Mount Holes (Decimal Inch) | 2.3600 |
| Maximum Air Pressure (psig) | 145.00 |
| Maximum Air Pressure (bar) | 10.00 |
| Sensor Compatibility | Round |
| Minimum Operating Temperature (F) | 14.00 |
| Minimum Operating Temperature (C) | -10.00 |
| Maximum Operating Temperature (F) | 194.00 |
| Maximum Operating Temperature (C) | 90.00 |
