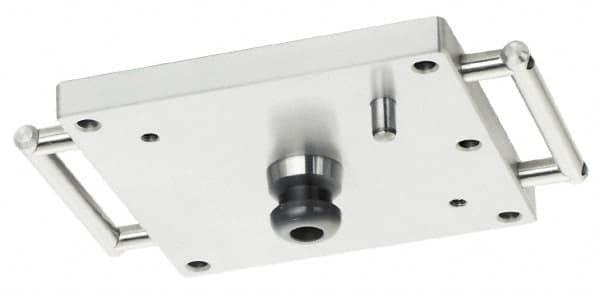

Schunk - Square Aluminum CNC Clamping Pallet - 199mm Wide x 199mm Long x 25mm Thick
Item #: 06686943
Brand: Schunk
Model #: 470011
Exact Tooling IR#: 04
Features and Benefits
Aluminum has a high strength-to-weight ratio and is wear resistant, nonmagnetic and conductive. It is easier to form and machine than steel and is naturally noncorrosive.
| Product Specifications | |
|---|---|
| Pallet Shape | Square |
| Plate Width/Diameter (Decimal Inch) | 7.8347 |
| Plate Width/Diameter (mm) | 199.00 |
| Plate Length (Decimal Inch) | 7.8347 |
| Plate Length (mm) | 199.00 |
| Material | Aluminum |
| Plate Thickness (mm) | 25.00 |
| Plane Parallelism (mm) | 0.05 |
| Plate Width/Diameter with Handles (mm) | 266.00 |
| Compatible Modules | NSD 150; NSD 200; NSM 170 |
