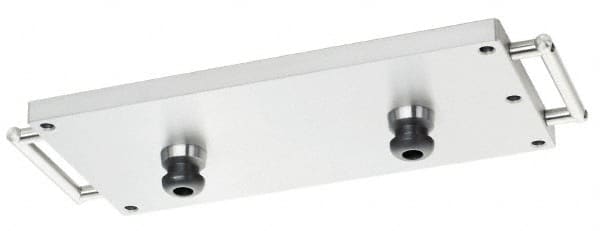

Schunk - Rectangular Steel CNC Clamping Pallet - 199mm Wide x 399mm Long x 20mm Thick
Item #: 06686950
Brand: Schunk
Model #: 470010
Exact Tooling IR#: 04
Features and Benefits
Steel is made up of an iron and carbon. It offers high tensile strength and corrosion resistance, but may offer some vibration during an operation.
| Product Specifications | |
|---|---|
| Pallet Shape | Rectangular |
| Plate Width/Diameter (Decimal Inch) | 7.8347 |
| Plate Width/Diameter (mm) | 199.00 |
| Plate Length (Decimal Inch) | 15.7087 |
| Plate Length (mm) | 399.00 |
| Material | Steel |
| Plate Thickness (mm) | 20.00 |
| Plane Parallelism (mm) | 0.02 |
| Distance Between Module Centers (mm) | 200.00 |
| Plate Width/Diameter with Handles (mm) | 481.00 |
| Compatible Modules | NSD 200; NSL 200; NSL 400 |
