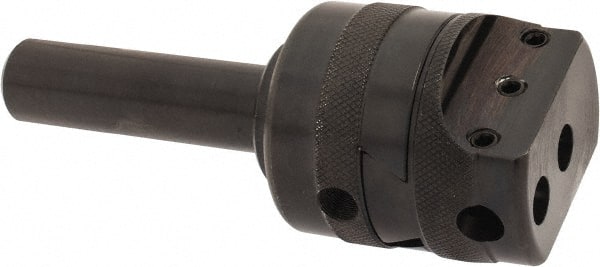

APT - 2" Body Diam, Manual Offset Boring Head - 4" Bore Diam, 3/8" Bar Hole Diam
Item #: 06770812
Brand: APT
Model #: BH34A
Exact Tooling IR#: 04
Features and Benefits
Offset boring heads feature an adjustable sliding measurement for centering the tool with the hole for better accuracy and finish.
Integral shank boring heads have the shank built into the head.
| Product Specifications | |
|---|---|
| Type | Offset Boring Head |
| Actuation Type | Manual |
| Body Diameter (Inch) | 2 |
| Body Diameter (Decimal Inch) | 2.0000 |
| Mount Type | Integral Shank |
| Shank Type | Straight Shank |
| Shank Diameter (Inch) | 3/4 |
| Series | BH |
| Boring Bar Hole Diameter (Inch) | 3/8 |
| Maximum Bore Diameter (Inch) | 4 |
| Projection (Inch) | 2-7/16 |
| Overall Length (Inch) | 5-1/16 |
| Offset (Inch) | 3/4 |
| Center Distance Between Holes (Inch) | 5/8 |
| Diameter Direct Reading (Decimal Inch) | 0.0010 |
