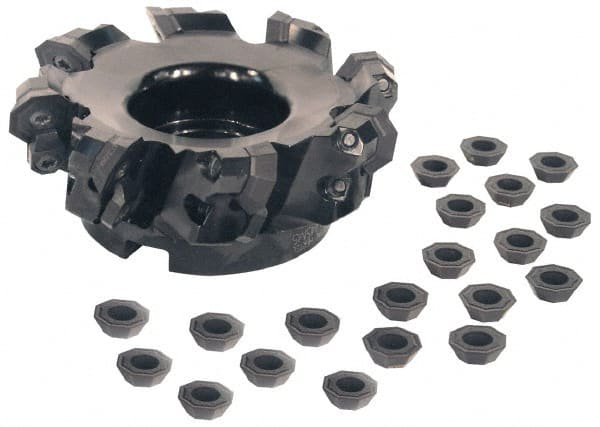

Kennametal - 4" Cut Diam, 1-1/4" Arbor Hole, 5mm Max Depth of Cut, 43° Indexable Chamfer & Angle Face Mill - 5 Inserts, OF.T 07L6... Insert, Right Hand Cut, 5 Flutes, Through Coolant, Series KSOM
Item #: 06805766
Brand: Kennametal
Model #: 3093647
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 4 |
| Cutting Diameter (mm) | 101.60 |
| Cutting Diameter (Decimal Inch) | 4.0000 |
| Arbor Hole Diameter (mm) | 31.75 |
| Arbor Hole Diameter (Inch) | 1-1/4 |
| Arbor Hole Diameter (Decimal Inch) | 1.2500 |
| Lead Angle | 43 |
| Overall Height (Inch) | 1-3/4 |
| Overall Height (Decimal Inch) | 1.7500 |
| Overall Height (mm) | 44.45 |
| Insert Compatibility | OF.T 07L6... |
| Series | KSOM |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 5.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1970 |
| Number of Cutter Inserts | 5 |
| Insert Holding Method | Screw |
| Number of Flutes | 5 |
| Hub Diameter (Decimal Inch) | 2.7220 |
| Hub Diameter (mm) | 69.15 |
| Keyway Width (Decimal Inch) | 0.5000 |
| Maximum Body Diameter (Decimal Inch) | 4.4360 |
| Maximum RPM | 6300 |
| Cutting Direction | Right Hand |
| Pitch | Medium |
