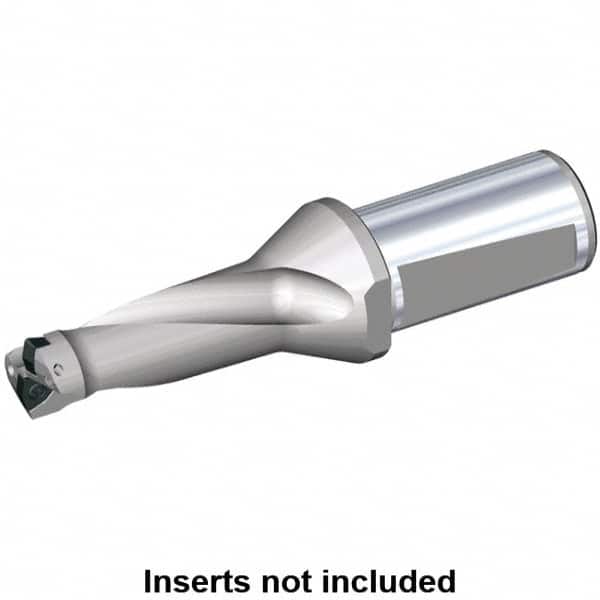

Kennametal - 138mm Max Drill Depth, 2.5xD, 69mm Diam, Indexable Insert Drill - 2 Inserts, 50mm Shank Diam, Whistle Notch Shank
Item #: 06830210
Brand: Kennametal
Model #: 1542105
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | DFT |
| Drill Diameter (mm) | 69.00 |
| Drill Diameter (Decimal Inch) | 2.7165 |
| Maximum Drill Depth (mm) | 138.00 |
| Maximum Drill Depth (Decimal Inch) | 5.4331 |
| Shank Type | Whistle Notch |
| Shank Diameter (mm) | 50.00 |
| Shank Diameter (Decimal Inch) | 1.9685 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 2.5xD |
| Toolholder Material | Steel |
| Insert Size (mm) | 11.63x4.93 |
| Insert Size (Decimal Inch) | 0.4580x0.1941 |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 2.8740 |
| Maximum Drill Diameter (mm) | 73.00 |
| Overall Length/Projection (mm) | 273.00 |
| Overall Length/Projection (Decimal Inch) | 10.7480 |
| Insert Compatibility | DFT 110506 |
| Body Length (Decimal Inch) | 8.0709 |
| Body Length (mm) | 205.00 |
| Shank Length (mm) | 68.00 |
| Series | Drill-Fix |
| Coolant Hole Thread Type | BSP |
| Shank End Coolant Hole Thread Size (Inch) | R1/4 |
