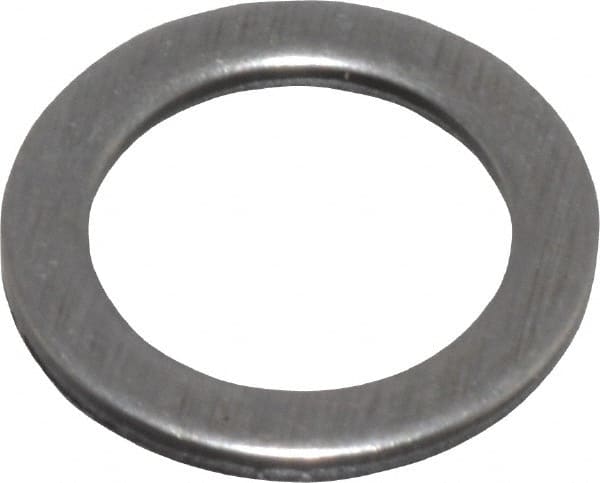

Precision Brand - 0.032" Thick, 1/4" Inside x 0.366" OD, Shortening Shim - 1/4" Screw, 1075 Spring Steel
Item #: 06885578
Brand: Precision Brand
Model #: 26153
Exact Tooling IR#: 04
Features and Benefits
Shortening shoulder screw shims are placed around the shank and under the head to shorten the screw.
Spring steel is a low-alloy, carbon steel with very high yield strength.
| Product Specifications | |
|---|---|
| Type | Shortening Shim |
| System of Measurement | Metric |
| Thickness (Decimal Inch) | 0.0320 |
| Screw Size (Inch) | 1/4 |
| Material | Spring Steel |
| Material Grade | 1075 |
| Thickness Tolerance (Decimal Inch) | +/- .0015" |
| Inside Diameter (Decimal Inch) | 0.2520 |
| Outside Diameter (Decimal Inch) | 0.3660 |
| Shoulder Diameter (Inch) | 1/4 |
