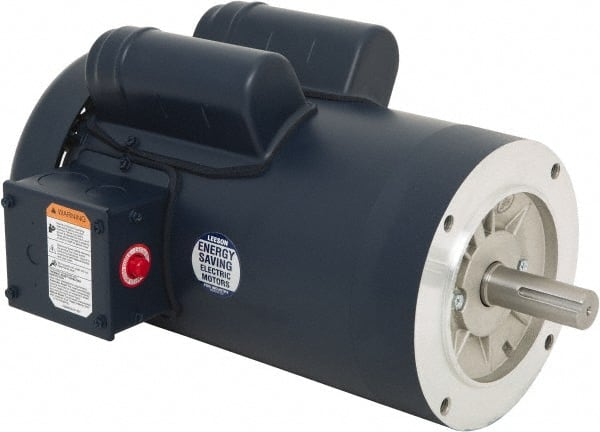

Leeson - 2 Max hp, 1,800 Max RPM, Capacitor Start Electric AC DC Motor - 115/230 V Input, Single Phase, 145TC Frame, C-Face Mount, TEFC Enclosure
Item #: 06902407
Brand: Leeson
Model #: 120060.00
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Motor Type | Capacitor Start |
| Type of Enclosure | TEFC |
| Maximum HorsePower | 2 |
| Minimum Horsepower | 2 |
| Phase | Single |
| Input Voltage | 115/230 |
| Frame Size | 145TC |
| Full Load Amperage | 10.0 |
| Mount Type | C-Face |
| Service Factor Rating | 1.00 |
| Frame Material | Steel |
| Applications | General Purpose |
| Maximum RPM | 1800 |
| PSC Code | 6105 |
