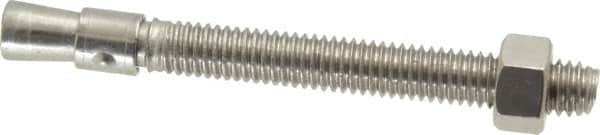

Red Head - 3/8" Diam, 3/8" Drill, 3-3/4" OAL, 3/4" Min Embedment Wedge Expansion Concrete Anchor - 304 Stainless Steel, Hex Nut Head, Hex Drive, 2-1/2" Thread Length
Item #: 06935522
Brand: Red Head
Model #: WW-3836
Exact Tooling IR#: 04
Features and Benefits
Wedge expansion concrete anchors are heavy-duty anchors used in cracked and uncracked concrete. They have expansion wedges that expand in concrete holes to increase holding power.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Type | Wedge Expansion |
| Diameter (Inch) | 3/8 |
| Drill Size (Inch) | 3/8 |
| Overall Length (Inch) | 3-3/4 |
| Material | Stainless Steel |
| Material Grade | 304 |
| Head Type | Hex Nut |
| Thread Size | 3/8-16 |
| Drive Type | Hex |
| Thread Length (Inch) | 2-1/2 |
| Thread Length (mm) | 63.50 |
| Fastener Standard | AC193; ACI 355.2; ANSI B212.15 |
| Overall Length (mm) | 95.25 |
| System of Measurement | Inch |
