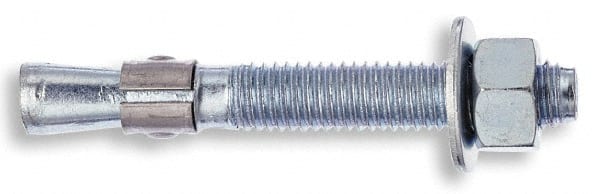

Red Head - 5/8" Diam, 5/8" Drill, 6" OAL, 1-5/8" Min Embedment Wedge Expansion Concrete Anchor - 304 Stainless Steel, Hex Nut Head, Hex Drive, 4-1/4" Thread Length
Item #: 06935571
Brand: Red Head
Model #: WW-5860
Exact Tooling IR#: 04
Features and Benefits
Wedge expansion concrete anchors are heavy-duty anchors used in cracked and uncracked concrete. They have expansion wedges that expand in concrete holes to increase holding power.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Type | Wedge Expansion |
| Diameter (Inch) | 5/8 |
| Drill Size (Inch) | 5/8 |
| Overall Length (Inch) | 6 |
| Material | Stainless Steel |
| Material Grade | 304 |
| Head Type | Hex Nut |
| Thread Size | 5/8-11 |
| Drive Type | Hex |
| Thread Length (Inch) | 4-1/4 |
| Thread Length (mm) | 107.95 |
| Fastener Standard | AC193; ACI 355.2; ANSI B212.15 |
| Overall Length (mm) | 152.40 |
| System of Measurement | Inch |
