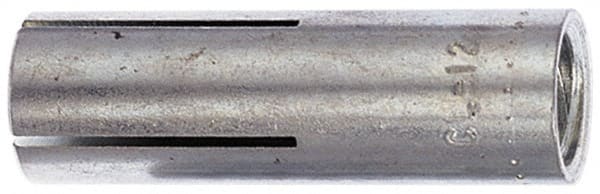

Red Head - 5/8" Diam, 5/8" Drill, 2" Min Embedment Drop-In Concrete Anchor - 316 Stainless Steel, Slotted Drive, 3/4" Thread Length
Item #: 06935860
Brand: Red Head
Model #: SSRM-12
Exact Tooling IR#: 04
Features and Benefits
Drop-in concrete anchors are internally threaded expansion anchors used with machine screws and bolts. They are ideal for use in concrete, block and stone.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Type | Drop-In |
| Diameter (Inch) | 5/8 |
| Drill Size (Inch) | 5/8 |
| Minimum Embedment (Inch) | 2 |
| Material | Stainless Steel |
| Material Grade | 316 |
| Thread Size | 1/2-13 |
| Drive Type | Slotted |
| Thread Length (Inch) | 3/4 |
| Thread Length (mm) | 19.05 |
| Fastener Standard | ANSI B212.15; ASTM E488 |
| For Use With | RT-112 |
| System of Measurement | Inch |
