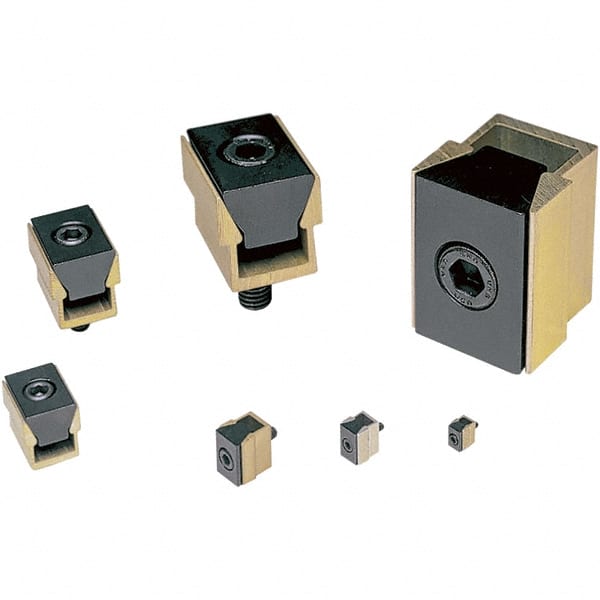

Mitee-Bite - 1,500 Lb Holding Force Single T-Slot Wedge Clamp - 0.635" Wide x 0.94" Deep x 3/4" High Base, 0.735 to 0.785" Jaw Spread, 10.8 Lb/Ft Torque, 1/4-20 Screw Thread
Item #: 06948103
Brand: Mitee-Bite
Model #: 60750
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Wedge Clamp Style | T-Slot |
| Single or Double Wedge | Single |
| Screw Thread Size | 1/4-20 |
| Machinable | No |
| Holding Force (Lb.) | 1500.00 |
| Torque (Ft/Lb) | 10.80 |
| Base Height (Decimal Inch) | 0.7500 |
| Base Width (Decimal Inch) | 0.6350 |
| Base Depth (Decimal Inch) | 0.9400 |
| Clearance Width (Decimal Inch) | 0.7500 |
| Minimum Jaw Spread (Decimal Inch) | 0.7350 |
| Maximum Jaw Spread (Decimal Inch) | 0.7850 |
| Projection From Base (Decimal Inch) | 0.3750 |
| Hex Key Size (Inch) | 3/16 |
| Overall Width (Decimal Inch) | 0.7350 |
| Number of Clamps | 6 |
