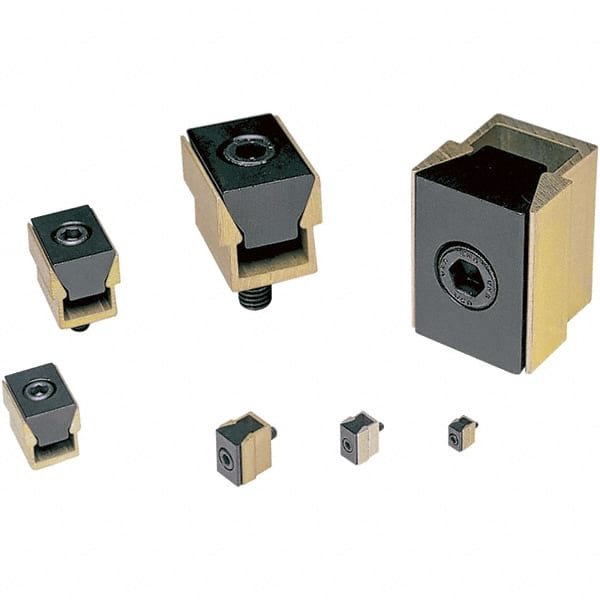

Mitee-Bite - 2,000 Lb Holding Force Single T-Slot Wedge Clamp - 0.82" Wide x 1-1/4" Deep x 1" High Base, 0.98 to 1.05" Jaw Spread, 10.4 Lb/Ft Torque, 5/16-18 Screw Thread
Item #: 06948152
Brand: Mitee-Bite
Model #: 61000
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Wedge Clamp Style | T-Slot |
| Single or Double Wedge | Single |
| Screw Thread Size | 5/16-18 |
| Machinable | No |
| Holding Force (Lb.) | 2000.00 |
| Torque (Ft/Lb) | 10.40 |
| Base Height (Decimal Inch) | 1.0000 |
| Base Width (Decimal Inch) | 0.8200 |
| Base Depth (Decimal Inch) | 1.2500 |
| Clearance Width (Decimal Inch) | 1.0000 |
| Minimum Jaw Spread (Decimal Inch) | 0.9800 |
| Maximum Jaw Spread (Decimal Inch) | 1.0500 |
| Projection From Base (Decimal Inch) | 0.5000 |
| Hex Key Size (Inch) | 1/4 |
| Overall Width (Decimal Inch) | 0.9800 |
| Number of Clamps | 4 |
