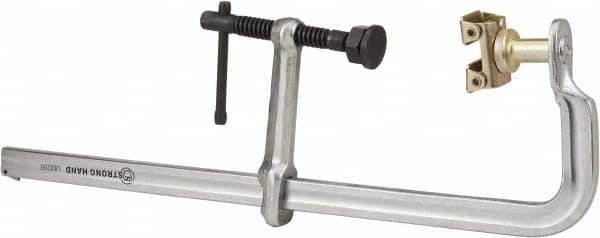

Strong Hand Tools - 5-1/2" Deep Throat, 20-1/2" Max Capacity, 4 in 1 Sliding Arm Clamp - 2,400 Lb Clamping Pressure, 20mm Spindle Diam
Item #: 06965164
Brand: Strong Hand Tools
Model #: UM205-C3
Exact Tooling IR#: 04
Features and Benefits
4-In-1 sliding arm clamps are designed is utility system that offers standard, pipe, spreader and step-over clamping. They have a removable, reversible clamp arm and a threaded hole in the jaw which allows for the addition of a V-pad and extender block.
T-handles are designed with threaded spindles allowing for maximum clamping pressure.
| Product Specifications | |
|---|---|
| Clamp Type | 4-in-1 |
| Maximum Capacity (Inch) | 20-1/2 |
| Throat Depth (Inch) | 5-1/2 |
| Handle Style | T-Handle |
| Frame Material | Steel |
| Clamping Pressure (Lb.) | 2400.00 |
| Series | UM |
| Spindle Diameter (mm) | 20.00 |
| Rail Size (Inch) | 1-3/16 x 9/16 |
| Tapped Hole Size | 3/8-16 |
| Finish/Coating | Nickel/Chrome Plated |
| Includes | Extender Block; V-Pad |
