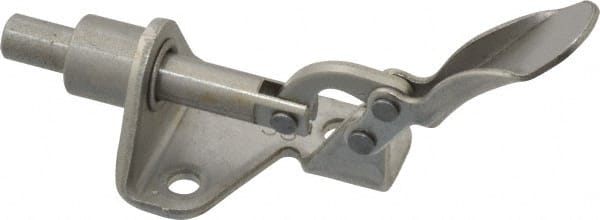

De-Sta-Co - 100 Lb Load Capacity, Flanged Base, Stainless Steel, Standard Straight Line Action Clamp - 3 Mounting Holes, 0.17" Mounting Hole Diam, 1/4" Plunger Diam, Thumb Handle
Item #: 06966113
Brand: De-Sta-Co
Model #: 601-SS
Exact Tooling IR#: 04
Features and Benefits
Stainless steel is used for a variety of applications. It has a higher heat tolerance and a higher resistance to corrosion than carbon steel.
| Product Specifications | |
|---|---|
| Load Capacity (N) | 444.82 |
| Load Capacity (Lb.) | 100.00 |
| Plunger Travel (mm) | 16.00 |
| Plunger Travel (Decimal Inch) | 0.6300 |
| Plunger Shape | Round |
| Plunger Thread Style | Internal |
| Plunger Thread Size | 8-32 |
| Plunger Centerline Height (mm) | 12.70 |
| Plunger Centerline Height (Decimal Inch) | 0.5000 |
| Plunger Diameter (Decimal Inch) | 0.2500 |
| Plunger Diameter (mm) | 6.35 |
| Base Style | Flanged |
| Handle Style | Thumb |
| Material | Stainless Steel |
| Overall Length (Decimal Inch) | 2.6100 |
| Overall Height (Decimal Inch) | 1.2700 |
| Base Length (Decimal Inch) | 1.3300 |
| Base Width (Decimal Inch) | 1.0500 |
| Number of Mounting Holes | 3 |
| Length Distance Between Mount Holes (mm) | 16.00 |
| Length Distance Between Mount Holes (Decimal Inch) | 0.6300 |
| Width Distance Between Mount Holes (mm) | 16.00 |
| Width Distance Between Mount Holes (Decimal Inch) | 0.6300 |
| Mounting Hole Diameter (mm) | 4.32 |
| Mounting Hole Diameter (Decimal Inch) | 0.1700 |
| Base Width (mm) | 26.67 |
| Base Length (mm) | 33.78 |
| Overall Length (mm) | 66.29 |
| Overall Height (mm) | 32.26 |
| Maximum Mechanical Advantage | 14:1 (Pushing); 25:1 (Pulling) |
| Includes | (2) Nuts; Spindle |
