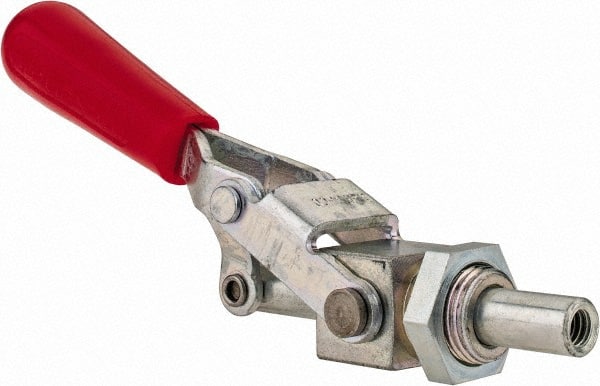

De-Sta-Co - 300 Lb Load Capacity, Mounting Plate Base, Carbon Steel, Standard Straight Line Action Clamp - 0.44" Plunger Diam, Straight Handle
Item #: 06966204
Brand: De-Sta-Co
Model #: 604
Exact Tooling IR#: 04
Features and Benefits
Carbon steel offers strength and rigidity during an application. It does not resist corrosion as well as stainless steel.
| Product Specifications | |
|---|---|
| Load Capacity (N) | 1334.47 |
| Load Capacity (Lb.) | 300.00 |
| Plunger Travel (mm) | 38.10 |
| Plunger Travel (Decimal Inch) | 1.5000 |
| Plunger Shape | Round |
| Plunger Thread Style | Internal |
| Plunger Thread Size | 5/16-18 |
| Plunger Diameter (Decimal Inch) | 0.4400 |
| Plunger Diameter (mm) | 11.18 |
| Base Style | Mounting Plate |
| Handle Style | Straight |
| Material | Carbon Steel |
| Overall Length (Decimal Inch) | 4.9500 |
| Overall Height (Decimal Inch) | 4.1600 |
| Base Length (Decimal Inch) | 2.8000 |
| Base Width (Decimal Inch) | 1.6000 |
| Handle Color | Red |
| Overall Length (mm) | 125.73 |
| Overall Height (mm) | 105.66 |
| Jam Nut Height (mm) | 6.35 |
| Jam Nut Height (Decimal Inch) | 0.2500 |
| Jam Nut Hex Size (Decimal Inch) | 1.0000 |
| Jam Nut Thread Size | 3/4-16 |
| Maximum Mechanical Advantage | 26:1 (Pulling); 45:1 (Pushing) |
| Includes | Jam Nut |
