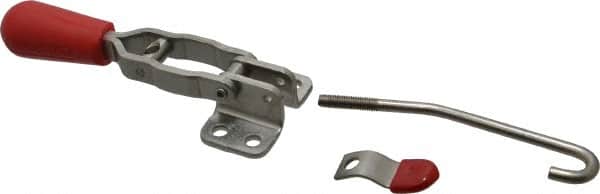

De-Sta-Co - 200 Lb Capacity, Horizontal, J Hook, Flanged Base, Stainless Steel Pull Action Latch Clamp - 2.35" Drawing Movement, 6.01" OAL, Straight Handle
Item #: 06966691
Brand: De-Sta-Co
Model #: 330-SS
Exact Tooling IR#: 04
Features and Benefits
Horizontal handles are designed with an in-line latching hook and a lower height profile for better overhead clearance during operations. They are manufactured with holding capacities of up to 7,500 pounds.
Stainless steel is used for a variety of applications. It has a higher heat tolerance and a higher resistance to corrosion than carbon steel, allowing use at higher temperatures.
| Product Specifications | |
|---|---|
| Clamping Orientation | Horizontal |
| Bar Style | J-Hook |
| Load Capacity (N) | 889.64 |
| Load Capacity (Lb.) | 200.00 |
| Base Style | Flanged |
| Material | Stainless Steel |
| Handle Style | Straight |
| Overall Length (Decimal Inch) | 6.0100 |
| Overall Length (mm) | 152.65 |
| Overall Height (mm) | 36.32 |
| Overall Height (Decimal Inch) | 1.4300 |
| Drawing Movement (mm) | 59.69 |
| Drawing Movement (Decimal Inch) | 2.3500 |
| Handle Color | Red |
| Base Length (mm) | 25.40 |
| Base Length (Decimal Inch) | 1.0000 |
| Base Width (mm) | 42.93 |
| Base Width (Decimal Inch) | 1.6900 |
| Mounting Hole Diameter (mm) | 5.59 |
| Mounting Hole Diameter (Decimal Inch) | 0.2200 |
| Width Distance Between Mount Holes (mm) | 30.99 |
| Width Distance Between Mount Holes (Decimal Inch) | 1.2200 |
| Length Distance Between Mount Holes (mm) | 12.70 |
| Length Distance Between Mount Holes (Decimal Inch) | 0.5000 |
| Bar Width (Decimal Inch) | 0.3100 |
| Bar Thickness (Decimal Inch) | 0.1900 |
| Base to Center of Bar (Decimal Inch) | 0.5600 |
| Base to Center of Bar (mm) | 14.22 |
| Includes | Patented Thumb Control Lever; Threaded J-Hook |
