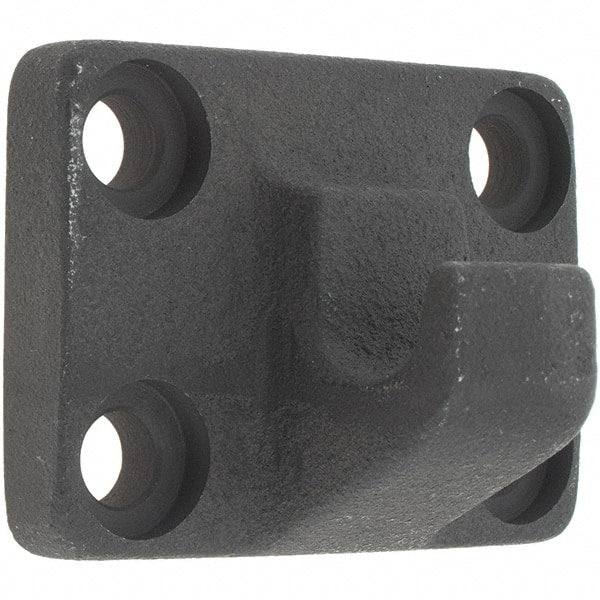

De-Sta-Co - 1 Lb Capacity, 0.41" Mounting Hole, Steel Clamp Latch Plate & Hook Assembly - 3.13" Base Length x 2.26" Base Width
Item #: 06966907
Brand: De-Sta-Co
Model #: 385102
Exact Tooling IR#: 04
Features and Benefits
Steel is made up of an iron and carbon. It offers high tensile strength and corrosion resistance, but may offer some vibration during an operation.
| Product Specifications | |
|---|---|
| For Use With | 375, 375-R, 385 & 385-R Pull Action Latch Clamps |
| Material | Steel |
| Base Length (mm) | 79.50 |
| Base Length (Decimal Inch) | 3.1300 |
| Load Capacity (Lb.) | 1.10 |
| Base Width (mm) | 57.40 |
| Base Width (Decimal Inch) | 2.2600 |
| Mounting Hole Size (mm) | 10.41 |
| Mounting Hole Size (Decimal Inch) | 0.4100 |
| Length Between Mount Hole Centers (mm) | 57.15 |
| Length Between Mount Hole Centers (Decimal Inch) | 2.2500 |
| Width Between Mount Hole Centers (mm) | 35.05 |
| Width Between Mount Hole Centers (Decimal Inch) | 1.3800 |
