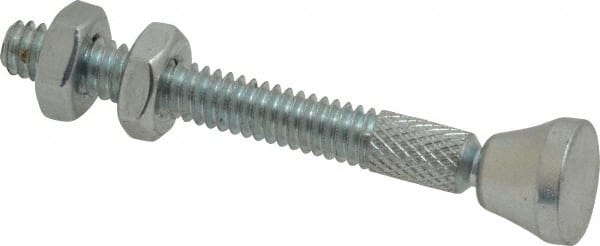

De-Sta-Co - 1/4-20 Carbon Steel Swivel Foot Tip Clamp Spindle Assembly - 39.62mm Thread Length, 60.45mm OAL, Flat Tip Cap, 1/2" Tip Surface Diam, Use with Toggle Clamps
Item #: 06993216
Brand: De-Sta-Co
Model #: 207206
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Application | Toggle Clamps |
| Spindle Material | Carbon Steel |
| Thread Size | 1/4-20 |
| Thread Length (Decimal Inch) | 1.5600 |
| Thread Length (mm) | 39.62 |
| Overall Length (mm) | 60.45 |
| Overall Length (Decimal Inch) | 2.3800 |
| Tip Type | Swivel Foot |
| Tip Surface Diameter (mm) | 12.70 |
| Tip Surface Diameter (Decimal Inch) | 0.5000 |
| Pad Material | Metal |
| Tip Cap Shape | Flat Tip |
| Swivel Angle | 14.00 |
| Tip Maximum Diameter (mm) | 12.70 |
| Tip Maximum Diameter (Decimal Inch) | 0.5000 |
| Nut Height (Decimal Inch) | 0.1600 |
| Nut Height (mm) | 4.06 |
| Includes | Jam Nuts |
