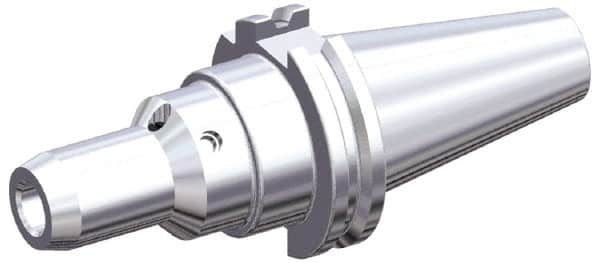

Kennametal - DV50 Taper Shank, 12mm Hole Diam, Hydraulic Tool Holder/Chuck - 31.6mm Nose Diam, 77mm Projection, 35mm Clamp Depth, 15,000 RPM, Through Coolant
Item #: 06994636
Brand: Kennametal
Model #: 1191015
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | DV50 |
| Hole Diameter (Decimal Inch) | 0.4724 |
| Hole Diameter (mm) | 12.00 |
| Nose Diameter (Decimal Inch) | 1.2430 |
| Nose Diameter (mm) | 31.60 |
| Projection (Decimal Inch) | 3.0315 |
| Projection (mm) | 77.00 |
| Through Coolant | Yes |
| Clamping Depth (mm) | 35.00 |
| Clamping Depth (Decimal Inch) | 1.3780 |
| Overall Length (mm) | 178.60 |
| Overall Length (Decimal Inch) | 7.0315 |
| Balanced to (RPM) | 15000 |
