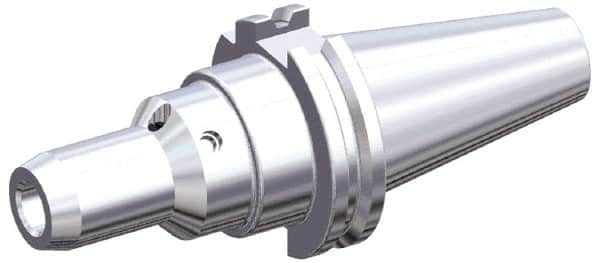

Kennametal - DV40 Taper Shank, 16mm Hole Diam, Hydraulic Tool Holder/Chuck - 37.6mm Nose Diam, 82mm Projection, 40mm Clamp Depth, 15,000 RPM, Through Coolant
Item #: 06994677
Brand: Kennametal
Model #: 1237452
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | DV40 |
| Hole Diameter (Decimal Inch) | 0.6299 |
| Hole Diameter (mm) | 16.00 |
| Nose Diameter (Decimal Inch) | 1.4790 |
| Nose Diameter (mm) | 37.60 |
| Projection (Decimal Inch) | 3.2284 |
| Projection (mm) | 82.00 |
| Through Coolant | Yes |
| Clamping Depth (mm) | 40.00 |
| Clamping Depth (Decimal Inch) | 1.5748 |
| Overall Length (mm) | 150.25 |
| Overall Length (Decimal Inch) | 5.9154 |
| Balanced to (RPM) | 15000 |
