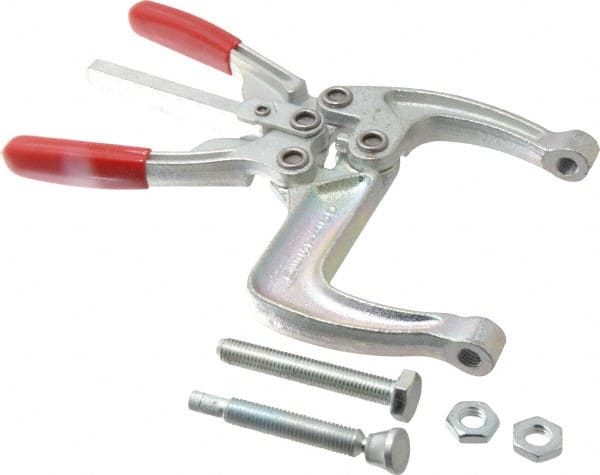

De-Sta-Co - 5337.87 N Load Capacity, 2.56" Throat Depth, 9.15" OAL, Carbon Steel, C Style Plier Clamp - 5.98" Max Jaw Capacity, M10x1.5 Spindle, 5.98" Open Throat Height, Red Handle, Spindle End
Item #: 06996821
Brand: De-Sta-Co
Model #: 484
Exact Tooling IR#: 04
Features and Benefits
Carbon steel is a soft, durable metal. It is commonly used for general purpose applications on abrasive materials, nonferrous materials, plastics and wood.
| Product Specifications | |
|---|---|
| Plier Shape | C-Style |
| Load Capacity (N) | 5337.87 |
| Load Capacity (Lb.) | 1200.00 |
| Throat Depth (Decimal Inch) | 2.5600 |
| Throat Depth (mm) | 65.02 |
| Maximum Jaw Capacity (mm) | 151.89 |
| Maximum Jaw Capacity (Decimal Inch) | 5.9800 |
| Overall Length (mm) | 232.41 |
| Overall Length (Decimal Inch) | 9.1500 |
| Material | Carbon Steel |
| Handle Color | Red |
| End Type | Spindle |
| Spindle Thread Size | M10x1.50 |
| Open Throat Height (mm) | 151.80 |
| Open Throat Height (Decimal Inch) | 5.98 |
| Closed Throat Height (mm) | 98.40 |
| Closed Throat Height (Decimal Inch) | 3.88 |
| Includes | Hex Head Spindle w/ Nut; Swivel Foot Spindle w/ Nut |
