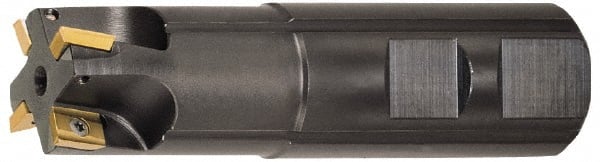

LMT - 1-1/4" Cut Diam, 0.413" Max Depth of Cut, 3/4" Shank Diam, 3-1/4" OAL, Indexable Square Shoulder End Mill - ADHX 1103, ADKX 1103, ADMX 1103 Inserts, Weldon Shank, Series Univex
Item #: 07026503
Brand: LMT
Model #: 50404
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.2500 |
| Cutting Diameter (Inch) | 1-1/4 |
| Shank Type | Weldon |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Overall Length/Projection (Decimal Inch) | 3.2500 |
| Series | Univex |
| Through Coolant | Noncoolant Through |
| Maximum Depth of Cut (Decimal Inch) | 0.4130 |
| Number of Cutter Inserts | 4 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | EMU |
| Number of Flutes | 4 |
| Head Length (Decimal Inch) | 1.2200 |
| Weldon Flat | Yes |
| Insert Compatibility | ADHX 1103; ADKX 1103; ADMX 1103 |
