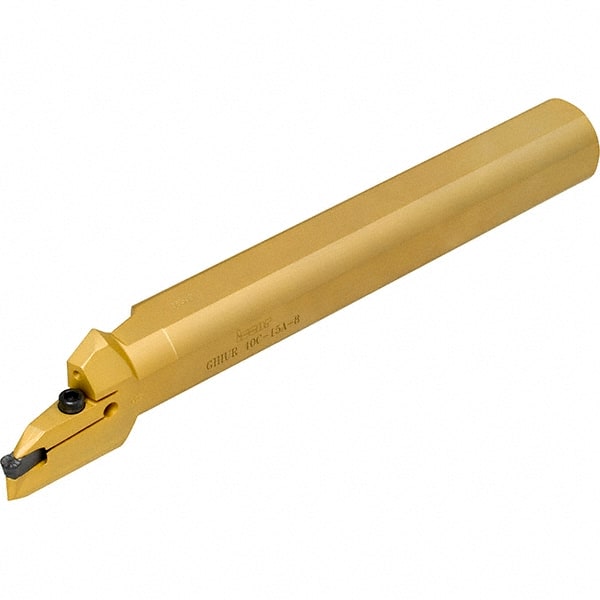

Iscar - 2.68" Min Bore Diam, 14" OAL, 1-1/2" Shank Diam, GHIUR Indexable Boring Bar - 2-1/2" Max Bore Depth, GDMA 840, GI.A 8.. Insert, Clamp Holding Method
Item #: 07076953
Brand: Iscar
Model #: 2801229
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | GHIUR |
| Series | Cut Grip |
| Minimum Bore Diameter (Decimal Inch) | 2.6800 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (Decimal Inch) | 2.5000 |
| Overall Length (Decimal Inch) | 14.0000 |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Insert Compatibility | GDMA 840; GI.A 8.. |
| Through Coolant | Yes |
| Multi-Use Tool | Yes |
| Multi-Use Application | Undercutting |
| Insert Holding Method | Clamp |
| Lead Angle | 45 |
| Center to Cutting Edge (Decimal Inch) | 1.0200 |
| Complete Insert Compatibility | GDMA 840; GIDA 80-40; GIDA 80-40-D; GIDA 80-40CB-D; GIDA 80-40YZ; GIDA 80-40YZ-D; GIPA 8-35V-1.20; GIPA 8-35V-1.20-D; GIPA 8YZ-35V-1.20; GIPA 8YZ-35V-0.80; GIPA 8YZ-35V-1.20-D |
