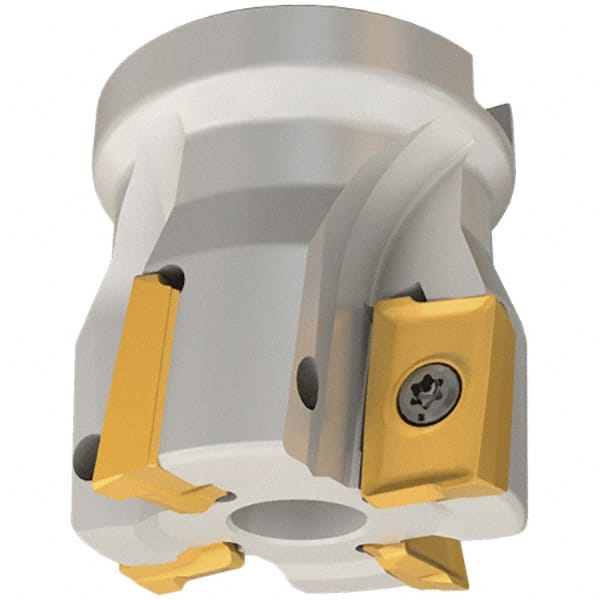

Iscar - 4 Inserts, 50mm Cut Diam, 22mm Arbor Diam, 20mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0/90° Lead Angle, 50mm High, 3M AXKT 2006 Insert Compatibility, Series Mill2000
Item #: 07077654
Brand: Iscar
Model #: 3101580
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 50.00 |
| Cutting Diameter (Decimal Inch) | 1.9685 |
| Arbor Hole Diameter (mm) | 22.00 |
| Arbor Hole Diameter (Decimal Inch) | 0.8661 |
| Lead Angle | 0/90 |
| Overall Height (mm) | 50.00 |
| Overall Height (Decimal Inch) | 1.9685 |
| Insert Compatibility | 3M AXKT 2006 |
| Series | Mill2000 |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 20.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.7874 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 4 |
| Insert Holding Method | Screw |
| Cutter Style | 3M F90AX-20 |
| Number of Flutes | 4 |
| Keyway Width (mm) | 10.40 |
| Keyway Width (Decimal Inch) | 0.4094 |
| Complete Insert Compatibility | 3M AXKT 200612R-PDR; 3M AXKT 200616R-PDR; 3M AXKT 200624R-PDR; 3M AXKT 200632R-PDR; 3M AXKT 200640R-PDR; 3M AXKT 2006PDTR; 3M AXKT 2006PDTR-RM |
