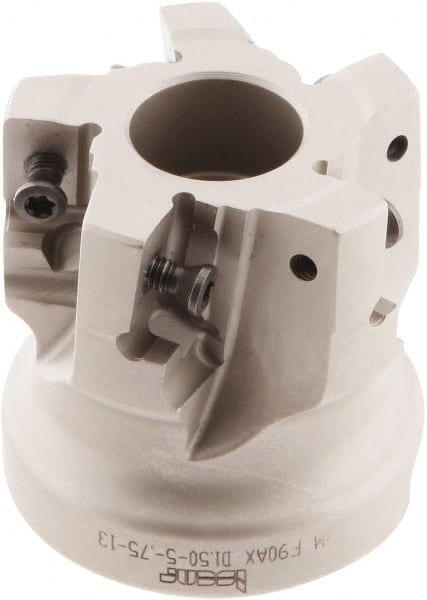

Iscar - 5 Inserts, 1-1/2" Cut Diam, 3/4" Arbor Diam, 1/2" Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0/90° Lead Angle, 1-1/2" High, 3M AXKT 1304 Insert Compatibility, Series Mill2000
Item #: 07077662
Brand: Iscar
Model #: 3101599
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 1-1/2 |
| Cutting Diameter (Decimal Inch) | 1.5000 |
| Arbor Hole Diameter (Inch) | 3/4 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Lead Angle | 0/90 |
| Overall Height (Inch) | 1-1/2 |
| Overall Height (Decimal Inch) | 1.5000 |
| Insert Compatibility | 3M AXKT 1304 |
| Series | Mill2000 |
| Through Coolant | No |
| Maximum Depth of Cut (Decimal Inch) | 0.5000 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 5 |
| Insert Holding Method | Screw |
| Cutter Style | 3M F90AX-13 |
| Number of Flutes | 5 |
| Keyway Width (Decimal Inch) | 0.3120 |
| Maximum RPM | 7000 |
| Cutting Edge Length (Decimal Inch) | 0.5560 |
| Minimum Insert Radius (Decimal Inch) | 0.0240 |
| Complete Insert Compatibility | 3M AXKT 130408R-PDRMM; 3M AXKT 130412R-PDRMM; 3M AXKT 130416R-PDRMM; 3M AXKT 130424R-PDRMM; 3M AXKT 1304PDR; 3M AXKT 1304PDR-MM |
