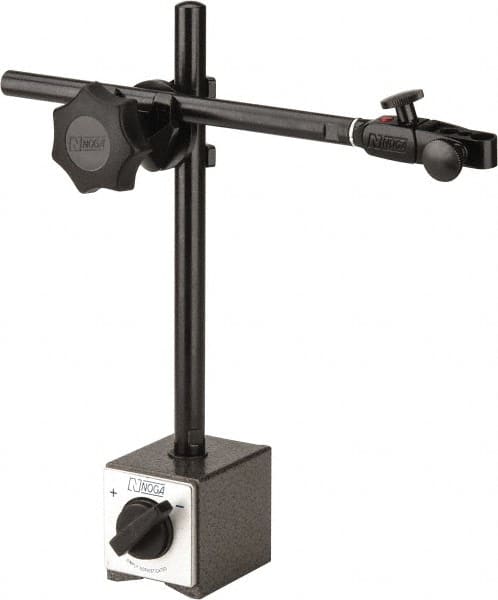

Noga - 175 Lb Magnetic Force, Fine Adjustment Indicator Positioner & Holder with Base - Post & Clamp, Rectangular Base, 2-3/8" Base Height, 60mm Base Length, 2" Base Width
Item #: 07113863
Brand: Noga
Model #: PH6400
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Includes Base | Yes |
| Fine Adjustment | Yes |
| Magnetic Pull | 175 Lbs |
| Base Height (mm) | 60.33 |
| Base Height (Inch) | 2-3/8 |
| Base Height (Decimal Inch) | 2.1700 |
| Base Length (mm) | 60.00 |
| Base Length (Decimal Inch) | 2.3622 |
| Base Width/Diameter (mm) | 50.80 |
| Base Width/Diameter (Inch) | 2 |
| Base Width/Diameter (Decimal Inch) | 2.0000 |
| Base Shape | Rectangular |
| Overall Length (Inch) | 8 |
| Post Height (mm) | 203.00 |
| Arm Length (mm) | 185.00 |
| Post Diameter (mm) | 14.00 |
| Arm Diameter (mm) | 12.00 |
| Clamping Diameter (mm) | 6.00; 8.00 |
| Clamping Diameter (Inch) | 3/8 |
| Thread Size | M8 |
| Arm Style | Post & Clamp |
| Includes | Attachment; Holder; Magnetic Base w/ Arm |
