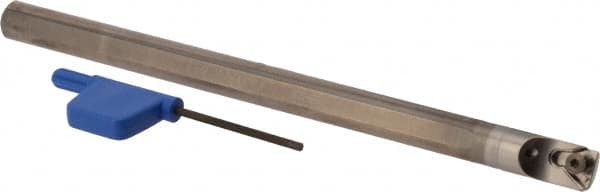

Iscar - 0.448" Min Bore Diam, 6" OAL, 3/8" Shank Diam, Indexable Boring Bar - TP.. 21.51 Insert, Screw Holding Method
Item #: 07137813
Brand: Iscar
Model #: 3601950
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | Isoturn |
| Minimum Bore Diameter (Decimal Inch) | 0.4480 |
| Hand of Holder | Right Hand |
| Overall Length (Decimal Inch) | 6.0000 |
| Shank Diameter (Decimal Inch) | 0.3750 |
| Insert Compatibility | TP.. 21.51 |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Lead Angle | 0 |
| Center to Cutting Edge (Decimal Inch) | 0.2400 |
| Toolholder Material | Carbide |
