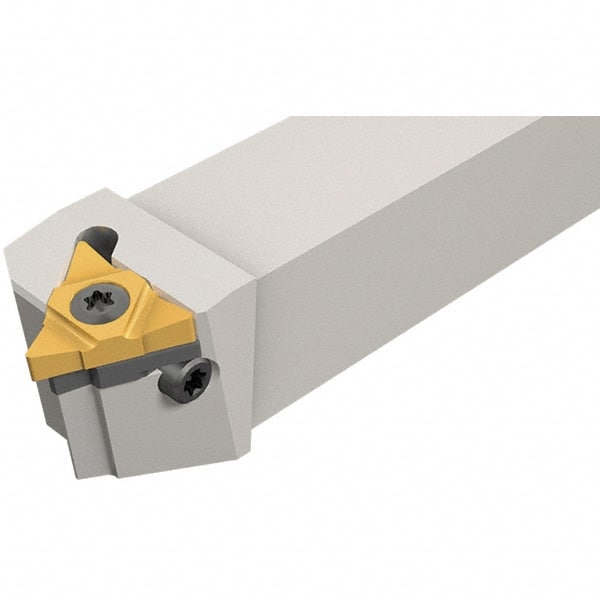

Iscar - External Thread, Left Hand Cut, 20mm Shank Width x 20mm Shank Height Indexable Threading Toolholder - 125mm OAL, Various Insert Compatibility, SE Toolholder, Series IscarThread
Item #: 07138985
Brand: Iscar
Model #: 3800004
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Type | External |
| Hand of Holder | Left Hand |
| Shank Width/Diameter (mm) | 20.00 |
| Shank Width/Diameter (Decimal Inch) | 0.7874 |
| Shank Height (mm) | 20.00 |
| Shank Height (Decimal Inch) | 0.7874 |
| Overall Length (Decimal Inch) | 4.9213 |
| Overall Length (mm) | 125.00 |
| Insert Compatibility | ER-BUT; ER-EL; ER-MJ; ER-NPTF; ER-PG; ER/L-60; ER/L-55; ER/L-ABUT; ER/L-ACME; ER/L-API; ER/L-APIR RD; ER/L-BSPT; ER/L-ISO; ER/L-NPT; ER/L-RND; ER/L-SAGE; ER/L-STACME; ER/L-TR; ER/L-UN; ER/L-UNJ; ER/L-W; GTGA; GTMA |
| Series | IscarThread |
| Toolholder Style | SE |
| Through Coolant | No |
| Multi-Use Tool | No |
| Back of Bar to Cutting Edge (mm) | 20.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.7874 |
